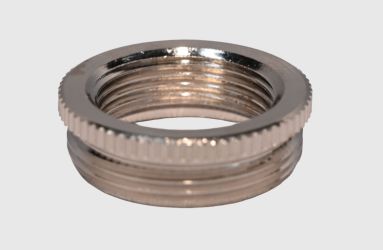

Reducers, Adaptors & Stopping Plugs
Reducers, adapters and stopping plugs in metallic and polyamide for thread conversion and unused cable entries.
- IP66
- IP68
- ISO 9001
- RoHS
Cable Gland Accessories
Cable gland accessories from Geissel India include lock nuts, reducers, adapters and stopping plugs in metallic and polyamide. They follow the same thread standards as our glands, so unused entries stay sealed, threads can be converted, and the enclosure rating is preserved.
- Lock nuts in brass, stainless steel and polyamide
- Reducers, adapters and enlargements for thread conversion
- Metallic and polyamide stopping plugs for unused entries
Certifications
- IP66
- IP68
- ISO 9001
- RoHS
Technical Summary

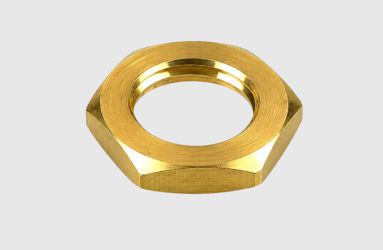

Series 785 Hexagonal lock nut, metric thread
| Thread | H (mm) | s (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|
| M 10 x 1,5 | 14 | 3 | 100 | 785.1000.0 | Enquire now |
| M 12 x 1,5 | 15 | 2,8 | 100 | 785.1200.0 | Enquire now |
| M 16 x 1,5 | 19 | 2,8 | 100 | 785.1600.0 | Enquire now |
| M 20 x 1,5 | 24 | 3 | 100 | 785.2000.0 | Enquire now |
| M 25 x 1,5 | 29 | 3,5 | 100 | 785.2500.0 | Enquire now |
| M 32 x 1,5 | 36 | 4 | 100 | 785.3200.0 | Enquire now |
| M 40 x 1,5 | 46 | 4,5 | 50 | 785.4000.0 | Enquire now |
| M 50 x 1,5 | 55 | 5 | 50 | 785.5000.0 | Enquire now |
| M 63 x 1,5 | 70 | 5,5 | 50 | 785.6300.0 | Enquire now |
| M 75 x 1,5 | 80 | 6,5 | 5 | 785.7500.0 | Enquire now |
Series 780 Hexagonal lock nut, PG and G threads
| Thread | H (mm) | s (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|
| G 1/2" | 24 | 3 | 100 | 780.0012.0 | Enquire now |
| G 1/4" | 15 | 2,8 | 100 | 780.0014.0 | Enquire now |
| G 3/4" | 30 | 3,5 | 100 | 780.0034.0 | Enquire now |
| G 3/8" | 19 | 3 | 100 | 780.0038.0 | Enquire now |
| G 5/8" | 26 | 3 | 100 | 780.0058.0 | Enquire now |
| G 1" | 36 | 4,5 | 100 | 780.0100.0 | Enquire now |
| G 1 1/2" | 51 | 5 | 50 | 780.0112.0 | Enquire now |
| G 1 1/4" | 46 | 5 | 100 | 780.0114.0 | Enquire now |
| G 2" | 66 | 5,5 | 50 | 780.0200.0 | Enquire now |
| G 2 1/2" | 80 | 7 | 25 | 780.0212.0 | Enquire now |
| G 2 1/4" | 70 | 6 | 25 | 780.0214.0 | Enquire now |
| G 3" | 95 | 8 | 25 | 780.0300.0 | Enquire now |
| G 4" | 125 | 11 | 1 | 780.0400.0 | Enquire now |
| G 5" | 150 | 12 | 1 | 780.0500.0 | Enquire now |
| Pg 7 | 15 | 2,8 | 100 | 780.0700.0 | Enquire now |
| Pg 9 | 18 | 2,8 | 100 | 780.0900.0 | Enquire now |
| Pg 11 | 21 | 3 | 100 | 780.1100.0 | Enquire now |
| Pg 13,5 | 23 | 3 | 100 | 780.1300.0 | Enquire now |
| Pg 16 | 26 | 3 | 100 | 780.1600.0 | Enquire now |
| Pg 21 | 32 | 3,5 | 100 | 780.2100.0 | Enquire now |
| Pg 29 | 41 | 4 | 100 | 780.2900.0 | Enquire now |
| Pg 36 | 51 | 5 | 50 | 780.3600.0 | Enquire now |
| Pg 42 | 60 | 5 | 50 | 780.4200.0 | Enquire now |
| Pg 48 | 64 | 5,5 | 50 | 780.4800.0 | Enquire now |
Series 782 Hexagonal lock nut, BSC threads
| Thread | H (mm) | s (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|
| BSC 3/4" | 28 | 3,5 | 100 | 782.0034.0 | Enquire now |
| BSC 1" | 35 | 4 | 100 | 782.0100.0 | Enquire now |
Series 786 EMC lock nut with claws, metric and PG
| Thread | H (mm) | s (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|
| M 12 x 1,5 | 15 | 3,5 | 100 | 786.1201.0 | Enquire now |
| M 16 x 1,5 | 19 | 3,5 | 100 | 786.1601.0 | Enquire now |
| M 20 x 1,5 | 24 | 3,5 | 100 | 786.2001.0 | Enquire now |
| M 25 x 1,5 | 30 | 4 | 100 | 786.2501.0 | Enquire now |
| M 32 x 1,5 | 36 | 4 | 100 | 786.3201.0 | Enquire now |
| M 40 x 1,5 | 46 | 4,7 | 50 | 786.4001.0 | Enquire now |
| M 50 x 1,5 | 60 | 5,7 | 50 | 786.5001.0 | Enquire now |
| M 63 x 1,5 | 70 | 6,7 | 25 | 786.6301.0 | Enquire now |
Series 787 EMC lock nut knurled, metric thread
| Thread | H (mm) | s (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|
| M 12 x 1,5 | 15 | 3,3 | 100 | 787.1200.0 | Enquire now |
| M 16 x 1,5 | 19 | 3,3 | 100 | 787.1600.0 | Enquire now |
| M 20 x 1,5 | 24 | 3,5 | 100 | 787.2000.0 | Enquire now |
| M 25 x 1,5 | 29 | 4 | 100 | 787.2500.0 | Enquire now |
| M 32 x 1,5 | 36 | 4,5 | 100 | 787.3200.0 | Enquire now |
Series 784 EMC lock nut with claws, PG thread
| Thread | H (mm) | s (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|
| Pg 7 | 15 | 3,3 | 100 | 784.0701.0 | Enquire now |
| Pg 9 | 18 | 3,3 | 100 | 784.0901.0 | Enquire now |
| Pg 11 | 21 | 3,5 | 100 | 784.1101.0 | Enquire now |
| Pg 13,5 | 23 | 3,5 | 100 | 784.1301.0 | Enquire now |
| Pg 16 | 26 | 3,5 | 100 | 784.1601.0 | Enquire now |
| Pg 21 | 4 | ,0 | 100 | 784.2101.0 | Enquire now |
| Pg 29 | 41 | 4,7 | 50 | 784.2901.0 | Enquire now |
| Pg 36 | 51 | 5,7 | 50 | 784.3601.0 | Enquire now |
Series 789 Hexagonal lock nut, AISI 303
| Thread | H (mm) | s (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|
| M 12 x 1,5 | 15 | 3 | 50 | 789.1200.0 | Enquire now |
| M 16 x 1,5 | 19 | 3 | 50 | 789.1600.0 | Enquire now |
| M 20 x 1,5 | 24 | 3,5 | 50 | 789.2000.0 | Enquire now |
| M 25 x 1,5 | 30 | 3,5 | 25 | 789.2500.0 | Enquire now |
| M 32 x 1,5 | 36 | 4 | 25 | 789.3200.0 | Enquire now |
| M 40 x 1,5 | 46 | 4,5 | 10 | 789.4000.0 | Enquire now |
| M 50 x 1,5 | 55 | 5 | 10 | 789.5000.0 | Enquire now |
| M 63 x 1,5 | 70 | 5,5 | 5 | 789.6300.0 | Enquire now |
Series 783 Hexagonal lock nut, AISI 316Ti
| Thread | H (mm) | s (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|
| M 12 x 1,5 | 15 | 3 | 50 | 783.1200.0 | Enquire now |
| M 16 x 1,5 | 19 | 3 | 50 | 783.1600.0 | Enquire now |
| M 20 x 1,5 | 24 | 3,5 | 50 | 783.2000.0 | Enquire now |
| M 25 x 1,5 | 30 | 3,5 | 25 | 783.2500.0 | Enquire now |
| M 32 x 1,5 | 36 | 4 | 25 | 783.3200.0 | Enquire now |
| M 40 x 1,5 | 46 | 4,5 | 10 | 783.4000.0 | Enquire now |
| M 50 x 1,5 | 55 | 5 | 10 | 783.5000.0 | Enquire now |
| M 63 x 1,5 | 70 | 5,5 | 5 | 783.6300.0 | Enquire now |
Series 796 Hexagonal lock nut PA 6 GF, metric thread
| Thread | H (mm) | s (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|
| M 12 x 1,5 | 17 | 5 | 100 | 796.1200.0 | Enquire now |
| M 12 x 1,5 | 17 | 5 | 100 | 796.1200.3 | Enquire now |
| M 16 x 1,5 | 22 | 5 | 100 | 796.1600.0 | Enquire now |
| M 16 x 1,5 | 22 | 5 | 100 | 796.1600.3 | Enquire now |
| M 20 x 1,5 | 26 | 6 | 100 | 796.2000.0 | Enquire now |
| M 20 x 1,5 | 26 | 6 | 100 | 796.2000.3 | Enquire now |
| M 25 x 1,5 | 32 | 6 | 100 | 796.2500.0 | Enquire now |
| M 25 x 1,5 | 32 | 6 | 100 | 796.2500.3 | Enquire now |
| M 32 x 1,5 | 41 | 7 | 100 | 796.3200.0 | Enquire now |
| M 32 x 1,5 | 41 | 7 | 100 | 796.3200.3 | Enquire now |
| M 40 x 1,5 | 50 | 7 | 50 | 796.4000.0 | Enquire now |
| M 40 x 1,5 | 50 | 7 | 50 | 796.4000.3 | Enquire now |
| M 50 x 1,5 | 60 | 8 | 50 | 796.5000.0 | Enquire now |
| M 50 x 1,5 | 60 | 8 | 50 | 796.5000.3 | Enquire now |
| M 63 x 1,5 | 75 | 8 | 50 | 796.6300.0 | Enquire now |
| M 63 x 1,5 | 75 | 8 | 50 | 796.6300.3 | Enquire now |
Series 791 Hexagonal lock nut PA 6 GF, PG thread
| Thread | H (mm) | s (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|
| Pg 7 | 19 | 5 | 100 | 791.0700.0 | Enquire now |
| Pg 7 | 19 | 5 | 100 | 791.0700.3 | Enquire now |
| Pg 9 | 22 | 5 | 100 | 791.0900.0 | Enquire now |
| Pg 9 | 22 | 5 | 100 | 791.0900.3 | Enquire now |
| Pg 11 | 24 | 5 | 100 | 791.1100.0 | Enquire now |
| Pg 11 | 24 | 5 | 100 | 791.1100.3 | Enquire now |
| Pg 13,5 | 27 | 6 | 100 | 791.1300.0 | Enquire now |
| Pg 13,5 | 27 | 6 | 100 | 791.1300.3 | Enquire now |
| Pg 16 | 30 | 6 | 100 | 791.1600.0 | Enquire now |
| Pg 16 | 30 | 6 | 100 | 791.1600.3 | Enquire now |
| Pg 21 | 36 | 7 | 100 | 791.2100.0 | Enquire now |
| Pg 21 | 36 | 7 | 100 | 791.2100.3 | Enquire now |
| Pg 29 | 46 | 7 | 100 | 791.2900.0 | Enquire now |
| Pg 29 | 46 | 7 | 100 | 791.2900.3 | Enquire now |
| Pg 36 | 60 | 8 | 25 | 791.3600.0 | Enquire now |
| Pg 36 | 60 | 8 | 25 | 791.3600.3 | Enquire now |
| Pg 42 | 65 | 8 | 25 | 791.4200.0 | Enquire now |
| Pg 42 | 65 | 8 | 25 | 791.4200.3 | Enquire now |
| Pg 48 | 70 | 8 | 25 | 791.4800.0 | Enquire now |
| Pg 48 | 70 | 8 | 25 | 791.4800.3 | Enquire now |
Series 611 Hexagonal adapter, short connection thread
| AG thread | IG thread | D (mm) | H (mm) | L (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|---|
| M 12 x 1,5 | M 12 x 1,5 | 14 | 8 | 10 | 5 | 611.1200.0 | Enquire now |
| M 16 x 1,5 | M 16 x 1,5 | 18 | 12 | 10,5 | 5 | 611.1600.0 | Enquire now |
| M 20 x 1,5 | M 20 x 1,5 | 22 | 15 | 12,5 | 6 | 611.2000.0 | Enquire now |
| M 25 x 1,5 | M 25 x 1,5 | 27 | 20 | 14,5 | 7 | 611.2500.0 | Enquire now |
| M 32 x 1,5 | M 32 x 1,5 | 34 | 27 | 16,5 | 8 | 611.3200.0 | Enquire now |
| M 40 x 1,5 | M 40 x 1,5 | 42 | 35 | 18,0 | 8 | 611.4000.0 | Enquire now |
| M 50 x 1,5 | M 50 x 1,5 | 52 | 44 | 19,5 | 9 | 611.5000.0 | Enquire now |
| M 63 x 1,5 | M 63 x 1,5 | 66 | 57 | 22 | 10 | 611.6300.0 | Enquire now |
Series 610 Hexagonal adapter, short connection (mixed threads)
| AG thread | IG thread | D (mm) | H (mm) | L (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|---|
| Pg 7 | Pg 7 | 14 | 10 | 10 | 5 | 610.0700.0 | Enquire now |
| Pg 9 | Pg 9 | 17 | 12,5 | 10,5 | 6 | 610.0900.0 | Enquire now |
| Pg 11 | Pg 11 | 20 | 15 | 11 | 6 | 610.1100.0 | Enquire now |
| M 12 x 1,5 | Pg 7 | 14 | 8 | 10 | 5 | 610.1207.0 | Enquire now |
| Pg 13,5 | Pg 13,5 | 22 | 17 | 12,5 | 6,5 | 610.1300.0 | Enquire now |
| Pg 16 | Pg 16 | 24 | 18,5 | 13,5 | 6,5 | 610.1600.0 | Enquire now |
| M 16 x 1,5 | Pg 9 | 18 | 12 | 10,5 | 5 | 610.1609.0 | Enquire now |
| M 20 x 1,5 | Pg 11 | 22 | 15 | 11 | 6 | 610.2011.0 | Enquire now |
| M 20 x 1,5 | Pg 13,5 | 22 | 15 | 12,5 | 6 | 610.2013.0 | Enquire now |
| M 20 x 1,5 | Pg 16 | 24 | 15 | 13,5 | 6 | 610.2016.0 | Enquire now |
| Pg 21 | Pg 21 | 30 | 24 | 15 | 7 | 610.2100.0 | Enquire now |
| M 25 x 1,5 | Pg 21 | 30 | 20 | 15 | 7 | 610.2521.0 | Enquire now |
| Pg 29 | Pg 29 | 40 | 32 | 16,5 | 8 | 610.2900.0 | Enquire now |
| M 32 x 1,5 | Pg 29 | 39 | 27 | 16,5 | 8 | 610.3229.0 | Enquire now |
| Pg 36 | Pg 36 | 50 | 42 | 19,5 | 9 | 610.3600.0 | Enquire now |
| M 40 x 1,5 | Pg 36 | 50 | 35 | 19,5 | 8 | 610.4036.0 | Enquire now |
| Pg 42 | Pg 42 | 57 | 48 | 22 | 10 | 610.4200.0 | Enquire now |
| Pg 48 | Pg 48 | 64 | 52,5 | 23 | 10 | 610.4800.0 | Enquire now |
| M 50 x 1,5 | Pg 42 | 57 | 44 | 22 | 9 | 610.5042.0 | Enquire now |
| M 63 x 1,5 | Pg 48 | 66 | 54 | 23 | 10 | 610.6348.0 | Enquire now |
Series 614 Hexagonal adapter, long connection thread
| AG thread | IG thread | D (mm) | H (mm) | L (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|---|
| M 12 x 1,5 | M 12 x 1,5 | 14 | 8 | 10 | 10 | 614.1200.0 | Enquire now |
| M 16 x 1,5 | M 16 x 1,5 | 18 | 12 | 10,5 | 10 | 614.1600.0 | Enquire now |
| M 20 x 1,5 | M 20 x 1,5 | 22 | 15 | 12,5 | 10 | 614.2000.0 | Enquire now |
| M 25 x 1,5 | M 25 x 1,5 | 27 | 20 | 14,5 | 11 | 614.2500.0 | Enquire now |
| M 32 x 1,5 | M 32 x 1,5 | 34 | 27 | 16,5 | 13 | 614.3200.0 | Enquire now |
| M 40 x 1,5 | M 40 x 1,5 | 42 | 35 | 18,0 | 13 | 614.4000.0 | Enquire now |
| M 50 x 1,5 | M 50 x 1,5 | 52 | 44 | 19,5 | 14 | 614.5000.0 | Enquire now |
| M 63 x 1,5 | M 63 x 1,5 | 66 | 57 | 22 | 14 | 614.6300.0 | Enquire now |
Series 612 Hexagonal adapter, long connection (mixed threads)
| AG thread | IG thread | D (mm) | H (mm) | L (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|---|
| Pg 9 | Pg 9 | 17 | 12,5 | 10,5 | 15 | 612.0900.0 | Enquire now |
| Pg 11 | Pg 11 | 20 | 15 | 11 | 15 | 612.1100.0 | Enquire now |
| M 12 x 1,5 | Pg 7 | 14 | 8 | 10 | 10 | 612.1207.0 | Enquire now |
| Pg 13,5 | Pg 13,5 | 22 | 17 | 12,5 | 15 | 612.1300.0 | Enquire now |
| Pg 16 | Pg 16 | 24 | 18,5 | 13,5 | 15 | 612.1600.0 | Enquire now |
| M 16 x 1,5 | Pg 9 | 18 | 12 | 10,5 | 10 | 612.1609.0 | Enquire now |
| M 20 x 1,5 | Pg 11 | 22 | 15 | 11 | 10 | 612.2011.0 | Enquire now |
| M 20 x 1,5 | Pg 13,5 | 22 | 15 | 12,5 | 10 | 612.2013.0 | Enquire now |
| M 20 x 1,5 | Pg 16 | 24 | 15 | 13,5 | 10 | 612.2016.0 | Enquire now |
| Pg 21 | Pg 21 | 30 | 24 | 15 | 15 | 612.2100.0 | Enquire now |
| M 25 x 1,5 | Pg 21 | 30 | 20 | 15 | 11 | 612.2521.0 | Enquire now |
| Pg 29 | Pg 29 | 40 | 32 | 16,5 | 15 | 612.2900.0 | Enquire now |
| M 32 x 1,5 | Pg 29 | 39 | 27 | 16,5 | 13 | 612.3229.0 | Enquire now |
| Pg 36 | Pg 36 | 50 | 42 | 19,5 | 15 | 612.3600.0 | Enquire now |
| M 40 x 1,5 | Pg 36 | 50 | 35 | 19,5 | 13 | 612.4036.0 | Enquire now |
| Pg 42 | Pg 42 | 57 | 48 | 22 | 15 | 612.4200.0 | Enquire now |
| M 50 x 1,5 | Pg 42 | 57 | 44 | 22 | 14 | 612.5042.0 | Enquire now |
| M 63 x 1,5 | Pg 48 | 66 | 54 | 23 | 14 | 612.6348.0 | Enquire now |
Series 731 Hexagonal enlargement, metric threads
| AG thread | IG thread | D (mm) | d (mm) | H (mm) | L (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|---|---|
| M 12 x 1,5 | M 16 x 1,5 | 18 | 8 | 10,5 | 5 | 100 | 731.1216.0 | Enquire now |
| M 16 x 1,5 | M 20 x 1,5 | 22 | 12 | 12,5 | 5 | 100 | 731.1620.0 | Enquire now |
| M 20 x 1,5 | M 25 x 1,5 | 27 | 15 | 14 | 6 | 50 | 731.2025.0 | Enquire now |
| M 25 x 1,5 | M 32 x 1,5 | 34 | 20 | 15,5 | 7 | 50 | 731.2532.0 | Enquire now |
| M 25 x 1,5 | M 40 x 1,5 | 42 | 20 | 16,5 | 7 | 50 | 731.2540.0 | Enquire now |
| M 32 x 1,5 | M 40 x 1,5 | 42 | 27 | 16,5 | 8 | 50 | 731.3240.0 | Enquire now |
| M 32 x 1,5 | M 50 x 1,5 | 52 | 27 | 19,5 | 8 | 25 | 731.3250.0 | Enquire now |
| M 40 x 1,5 | M 50 x 1,5 | 52 | 35 | 19,5 | 8 | 25 | 731.4050.0 | Enquire now |
| M 50 x 1,5 | M 63 x 1,5 | 66 | 44,5 | 22 | 9 | 10 | 731.5063.0 | Enquire now |
Series 730 Hexagonal enlargement, PG threads
| AG thread | IG thread | D (mm) | d (mm) | H (mm) | L (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Pg 7 | Pg 9 | 17 | 10 | 10 | 5 | 100 | 730.0709.0 | Enquire now |
| Pg 9 | Pg 11 | 20 | 12,5 | 10,5 | 6 | 100 | 730.0911.0 | Enquire now |
| Pg 9 | Pg 13,5 | 22 | 12,5 | 11,5 | 6 | 100 | 730.0913.0 | Enquire now |
| Pg 11 | Pg 13,5 | 22 | 15 | 11,5 | 6 | 100 | 730.1113.0 | Enquire now |
| Pg 11 | Pg 16 | 24 | 15 | 12,5 | 6 | 50 | 730.1116.0 | Enquire now |
| Pg 13,5 | Pg 16 | 24 | 17 | 12,5 | 6,5 | 50 | 730.1316.0 | Enquire now |
| Pg 13,5 | Pg 21 | 30 | 17 | 14,5 | 6,5 | 50 | 730.1321.0 | Enquire now |
| Pg 16 | Pg 21 | 30 | 18,5 | 14,5 | 6,5 | 25 | 730.1621.0 | Enquire now |
| Pg 21 | Pg 29 | 39 | 24 | 16 | 7 | 100 | 730.2129.0 | Enquire now |
| Pg 29 | Pg 36 | 50 | 32 | 19,5 | 8 | 50 | 730.2936.0 | Enquire now |
| Pg 36 | Pg 42 | 57 | 42 | 22 | 9 | 25 | 730.3642.0 | Enquire now |
| Pg 42 | Pg 48 | 64 | 48 | 23 | 10 | 10 | 730.4248.0 | Enquire now |
Series 744 Hexagonal enlargement PA 6 GF, metric threads
| AG thread | IG thread | D (mm) | H (mm) | L (mm) | l (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|---|---|
| M 12 x 1,5 | M 16 x 1,5 | 20 | 7,5 | 10,5 | 8 | 100 | 744.1216.0 | Enquire now |
| M 12 x 1,5 | M 16 x 1,5 | 20 | 7,5 | 10,5 | 8 | 100 | 744.1216.3 | Enquire now |
| M 16 x 1,5 | M 20 x 1,5 | 24 | 11 | 12 | 8 | 100 | 744.1620.0 | Enquire now |
| M 16 x 1,5 | M 20 x 1,5 | 24 | 11 | 12 | 8 | 100 | 744.1620.3 | Enquire now |
| M 20 x 1,5 | M 25 x 1,5 | 30 | 15 | 13 | 9 | 100 | 744.2025.0 | Enquire now |
| M 20 x 1,5 | M 25 x 1,5 | 30 | 15 | 13 | 9 | 100 | 744.2025.3 | Enquire now |
| M 25 x 1,5 | M 32 x 1,5 | 36 | 20 | 14 | 10 | 50 | 744.2532.0 | Enquire now |
| M 25 x 1,5 | M 32 x 1,5 | 36 | 20 | 14 | 10 | 50 | 744.2532.3 | Enquire now |
| M 32 x 1,5 | M 40 x 1,5 | 44 | 26 | 15 | 11 | 50 | 744.3240.0 | Enquire now |
| M 32 x 1,5 | M 40 x 1,5 | 44 | 26 | 15 | 11 | 50 | 744.3240.3 | Enquire now |
| M 40 x 1,5 | M 50 x 1,5 | 55 | 34 | 16 | 12 | 25 | 744.4050.0 | Enquire now |
| M 40 x 1,5 | M 50 x 1,5 | 55 | 34 | 16 | 12 | 25 | 744.4050.3 | Enquire now |
| M 50 x 1,5 | M 63 x 1,5 | 70 | 43 | 18,5 | 13 | 25 | 744.5063.0 | Enquire now |
| M 50 x 1,5 | M 63 x 1,5 | 70 | 43 | 18,5 | 13 | 25 | 744.5063.3 | Enquire now |
Series 701 Knurled reducer, metric and PG threads
| AG thread | IG thread | D (mm) | H (mm) | L (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|---|
| M 16 x 1,5 | M 12 x 1,5 | 18 | 2,5 | 5 | 100 | 701.1612.0 | Enquire now |
| M 20 x 1,5 | M 12 x 1,5 | 22 | 3 | 6 | 100 | 701.2012.0 | Enquire now |
| M 20 x 1,5 | M 16 x 1,5 | 22 | 3 | 6 | 100 | 701.2016.0 | Enquire now |
| M 25 x 1,5 | M 16 x 1,5 | 27 | 3 | 7 | 50 | 701.2516.0 | Enquire now |
| M 25 x 1,5 | M 20 x 1,5 | 27 | 3 | 7 | 100 | 701.2520.0 | Enquire now |
| M 32 x 1,5 | M 20 x 1,5 | 34 | 3 | 8 | 25 | 701.3220.0 | Enquire now |
| M 32 x 1,5 | M 25 x 1,5 | 34 | 3 | 8 | 50 | 701.3225.0 | Enquire now |
| M 40 x 1,5 | M 25 x 1,5 | 43 | 3,5 | 8 | 25 | 701.4025.0 | Enquire now |
| M 40 x 1,5 | M 32 x 1,5 | 43 | 3,5 | 8 | 25 | 701.4032.0 | Enquire now |
| M 50 x 1,5 | M 32 x 1,5 | 53 | 3,5 | 9 | 10 | 701.5032.0 | Enquire now |
| M 50 x 1,5 | M 40 x 1,5 | 53 | 3,5 | 9 | 25 | 701.5040.0 | Enquire now |
| M 63 x 1,5 | M 40 x 1,5 | 66 | 4 | 10 | 10 | 701.6340.0 | Enquire now |
| M 63 x 1,5 | M 50 x 1,5 | 66 | 4 | 10 | 10 | 701.6350.0 | Enquire now |
Series 700 Knurled reducer, PG threads
| AG thread | IG thread | D (mm) | H (mm) | L (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|---|
| Pg 9 | Pg 7 | 17 | 2,5 | 6 | 100 | 700.0907.0 | Enquire now |
| Pg 11 | Pg 7 | 20 | 2,5 | 6 | 100 | 700.1107.0 | Enquire now |
| Pg 11 | Pg 9 | 20 | 2,5 | 6 | 100 | 700.1109.0 | Enquire now |
| Pg 13,5 | Pg 7 | 22 | 2,5 | 6,5 | 100 | 700.1307.0 | Enquire now |
| Pg 13,5 | Pg 9 | 22 | 2,5 | 6,5 | 100 | 700.1309.0 | Enquire now |
| Pg 13,5 | Pg 11 | 22 | 3 | 6,5 | 100 | 700.1311.0 | Enquire now |
| Pg 16 | Pg 7 | 24 | 3 | 6,5 | 50 | 700.1607.0 | Enquire now |
| Pg 16 | Pg 9 | 24 | 3 | 6,5 | 100 | 700.1609.0 | Enquire now |
| Pg 16 | Pg 11 | 24 | 3 | 6,5 | 100 | 700.1611.0 | Enquire now |
| Pg 16 | Pg 13,5 | 24 | 3 | 6,5 | 100 | 700.1613.0 | Enquire now |
| Pg 21 | Pg 11 | 30 | 3 | 7 | 50 | 700.2111.0 | Enquire now |
| Pg 21 | Pg 13,5 | 30 | 3 | 7 | 50 | 700.2113.0 | Enquire now |
| Pg 21 | Pg 16 | 30 | 3 | 7 | 50 | 700.2116.0 | Enquire now |
| Pg 29 | Pg 16 | 39 | 3,5 | 8 | 25 | 700.2916.0 | Enquire now |
| Pg 29 | Pg 21 | 39 | 3,5 | 8 | 25 | 700.2921.0 | Enquire now |
| Pg 36 | Pg 21 | 50 | 3,5 | 9 | 25 | 700.3621.0 | Enquire now |
| Pg 36 | Pg 29 | 50 | 3,5 | 9 | 25 | 700.3629.0 | Enquire now |
| Pg 42 | Pg 36 | 57 | 4 | 10 | 25 | 700.4236.0 | Enquire now |
| Pg 48 | Pg 36 | 64 | 4 | 10 | 25 | 700.4836.0 | Enquire now |
| Pg 48 | Pg 42 | 64 | 4 | 10 | 25 | 700.4842.0 | Enquire now |
Series 713 Hexagonal reducer IP68, metric and PG threads
| AG thread | IG thread | H (mm) | L (mm) | l (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|---|
| M 16 x 1,5 | M 12 x 1,5 | 18 | 3 | 5,5 | 50 | 713.1612.1 | Enquire now |
| M 20 x 1,5 | M 12 x 1,5 | 22 | 3 | 6 | 50 | 713.2012.1 | Enquire now |
| M 20 x 1,5 | M 16 x 1,5 | 22 | 3 | 6 | 50 | 713.2016.1 | Enquire now |
| M 25 x 1,5 | M 16 x 1,5 | 28 | 3,5 | 6,5 | 25 | 713.2516.1 | Enquire now |
| M 25 x 1,5 | M 20 x 1,5 | 28 | 3,5 | 6,5 | 25 | 713.2520.1 | Enquire now |
| M 32 x 1,5 | M 16 x 1,5 | 36 | 3,5 | 8 | 25 | 713.3216.1 | Enquire now |
| M 32 x 1,5 | M 20 x 1,5 | 36 | 3,5 | 8 | 25 | 713.3220.1 | Enquire now |
| M 32 x 1,5 | M 25 x 1,5 | 36 | 3,5 | 8 | 25 | 713.3225.1 | Enquire now |
| M 40 x 1,5 | M 20 x 1,5 | 43 | 4 | 8,5 | 25 | 713.4020.1 | Enquire now |
| M 40 x 1,5 | M 25 x 1,5 | 43 | 4 | 8,5 | 10 | 713.4025.1 | Enquire now |
| M 40 x 1,5 | M 32 x 1,5 | 43 | 4 | 8,5 | 10 | 713.4032.1 | Enquire now |
Series 710 Hexagonal reducer IP68, PG threads
| AG thread | IG thread | H (mm) | L (mm) | l (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|---|
| Pg 11 | Pg 9 | 20 | 2,5 | 6 | 100 | 710.1109.1 | Enquire now |
| Pg 16 | Pg 11 | 24 | 3 | 6,5 | 100 | 710.1611.1 | Enquire now |
| Pg 21 | Pg 13,5 | 30 | 3 | 7 | 50 | 710.2113.1 | Enquire now |
| Pg 21 | Pg 16 | 30 | 3 | 7 | 100 | 710.2116.1 | Enquire now |
| Pg 29 | Pg 21 | 40 | 3,5 | 8 | 50 | 710.2921.1 | Enquire now |
| Pg 36 | Pg 29 | 50 | 3,5 | 9 | 50 | 710.3629.1 | Enquire now |
Series 706 Knurled adapter, metric to PG/G
| AG thread | IG thread | H (mm) | L (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|
| M 16 x 1,5 | Pg 7 | 2,5 | 5 | 100 | 706.1607.0 | Enquire now |
| M 20 x 1,5 | Pg 9 | 3 | 6 | 50 | 706.2009.0 | Enquire now |
| M 25 x 1,5 | Pg 11 | 3 | 7 | 50 | 706.2511.0 | Enquire now |
| M 25 x 1,5 | Pg 13,5 | 3 | 7 | 50 | 706.2513.0 | Enquire now |
| M 25 x 1,5 | Pg 16 | 3 | 7 | 50 | 706.2516.0 | Enquire now |
| M 32 x 1,5 | Pg 16 | 3 | 8 | 25 | 706.3216.0 | Enquire now |
| M 32 x 1,5 | Pg 21 | 3 | 8 | 25 | 706.3221.0 | Enquire now |
| M 40 x 1,5 | Pg 21 | 3,5 | 8 | 25 | 706.4021.0 | Enquire now |
| M 50 x 1,5 | Pg 29 | 3,5 | 9 | 25 | 706.5029.0 | Enquire now |
| M 63 x 1,5 | Pg 36 | 4 | 10 | 10 | 706.6336.0 | Enquire now |
| M 63 x 1,5 | Pg 42 | 4 | 10 | 10 | 706.6342.0 | Enquire now |
Series 705 Knurled adapter, PG/G mixed threads
| AG thread | IG thread | H (mm) | L (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|
| M 20 x 1,5 | M 20 x 1,5 | 100 | 100 | 50 | 705.0916.0 | Enquire now |
| Pg 11 | G 3/8" | 2,5 | 6 | 100 | 705.1138.0 | Enquire now |
| Pg 13,5 | G 3/8" | 2,5 | 6,5 | 100 | 705.1338.0 | Enquire now |
| Pg 16 | G 1/2" | 3 | 6,5 | 100 | 705.1612.0 | Enquire now |
| Pg 16 | M 20 x 1,5 | 3 | 6,5 | 50 | 705.1620.0 | Enquire now |
| Pg 16 | G 3/8" | 3 | 6,5 | 100 | 705.1638.0 | Enquire now |
| M 20 x 1,5 | G 3/8" | 2,5 | 6,5 | 100 | 705.2038.0 | Enquire now |
| Pg 21 | M 20 x 1,5 | 3 | 7 | 100 | 705.2120.0 | Enquire now |
| Pg 21 | M 25 x 1,5 | 3 | 7 | 100 | 705.2125.0 | Enquire now |
| Pg 29 | M 25 x 1,5 | 3,5 | 8 | 25 | 705.2925.0 | Enquire now |
Series 724 Hexagonal reducer PA 6 GF, metric threads
| AG thread | IG thread | H (mm) | L (mm) | l (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|---|
| M 20 x 1,5 | M 12 x 1,5 | 20 | 3 | 9 | 50 | 724.2012.0 | Enquire now |
| M 20 x 1,5 | M 12 x 1,5 | 20 | 3 | 9 | 50 | 724.2012.3 | Enquire now |
| M 20 x 1,5 | M 16 x 1,5 | 24 | 3 | 9 | 50 | 724.2016.0 | Enquire now |
| M 20 x 1,5 | M 16 x 1,5 | 24 | 3 | 9 | 50 | 724.2016.3 | Enquire now |
| M 25 x 1,5 | M 12 x 1,5 | 30 | 3,5 | 10 | 50 | 724.2512.0 | Enquire now |
| M 25 x 1,5 | M 12 x 1,5 | 30 | 3,5 | 10 | 50 | 724.2512.3 | Enquire now |
| M 25 x 1,5 | M 16 x 1,5 | 30 | 3,5 | 10 | 50 | 724.2516.0 | Enquire now |
| M 25 x 1,5 | M 16 x 1,5 | 30 | 3,5 | 10 | 50 | 724.2516.3 | Enquire now |
| M 25 x 1,5 | M 20 x 1,5 | 30 | 3,5 | 10 | 50 | 724.2520.0 | Enquire now |
| M 25 x 1,5 | M 20 x 1,5 | 30 | 3,5 | 10 | 50 | 724.2520.3 | Enquire now |
| M 32 x 1,5 | M 16 x 1,5 | 36 | 4 | 11 | 50 | 724.3216.0 | Enquire now |
| M 32 x 1,5 | M 16 x 1,5 | 36 | 5 | 11 | 50 | 724.3216.3 | Enquire now |
| M 32 x 1,5 | M 20 x 1,5 | 36 | 4 | 11 | 50 | 724.3220.0 | Enquire now |
| M 32 x 1,5 | M 20 x 1,5 | 36 | 5 | 11 | 50 | 724.3220.3 | Enquire now |
| M 32 x 1,5 | M 25 x 1,5 | 36 | 4 | 11 | 25 | 724.3225.0 | Enquire now |
| M 32 x 1,5 | M 25 x 1,5 | 36 | 5 | 11 | 25 | 724.3225.3 | Enquire now |
| M 40 x 1,5 | M 20 x 1,5 | 44 | 4 | 12 | 25 | 724.4020.0 | Enquire now |
| M 40 x 1,5 | M 20 x 1,5 | 44 | 4 | 12 | 25 | 724.4020.3 | Enquire now |
| M 40 x 1,5 | M 25 x 1,5 | 44 | 4 | 12 | 25 | 724.4025.0 | Enquire now |
| M 40 x 1,5 | M 25 x 1,5 | 44 | 4 | 12 | 25 | 724.4025.3 | Enquire now |
| M 40 x 1,5 | M 32 x 1,5 | 44 | 4 | 12 | 25 | 724.4032.0 | Enquire now |
| M 40 x 1,5 | M 32 x 1,5 | 44 | 4 | 12 | 25 | 724.4032.3 | Enquire now |
| M 50 x 1,5 | M 25 x 1,5 | 55 | 5 | 13 | 25 | 724.5025.0 | Enquire now |
| M 50 x 1,5 | M 25 x 1,5 | 55 | 5 | 13 | 25 | 724.5025.3 | Enquire now |
| M 50 x 1,5 | M 32 x 1,5 | 55 | 5 | 13 | 25 | 724.5032.0 | Enquire now |
| M 50 x 1,5 | M 32 x 1,5 | 55 | 5 | 13 | 25 | 724.5032.3 | Enquire now |
| M 50 x 1,5 | M 40 x 1,5 | 55 | 5 | 13 | 25 | 724.5040.0 | Enquire now |
| M 50 x 1,5 | M 40 x 1,5 | 55 | 5 | 13 | 25 | 724.5040.3 | Enquire now |
| M 63 x 1,5 | M 32 x 1,5 | 70 | 6 | 15 | 25 | 724.6332.0 | Enquire now |
| M 63 x 1,5 | M 32 x 1,5 | 70 | 6 | 15 | 25 | 724.6332.3 | Enquire now |
| M 63 x 1,5 | M 40 x 1,5 | 70 | 6 | 15 | 25 | 724.6340.0 | Enquire now |
| M 63 x 1,5 | M 40 x 1,5 | 70 | 6 | 15 | 25 | 724.6340.3 | Enquire now |
| M 63 x 1,5 | M 50 x 1,5 | 70 | 6 | 15 | 25 | 724.6350.0 | Enquire now |
| M 63 x 1,5 | M 50 x 1,5 | 70 | 6 | 15 | 25 | 724.6350.3 | Enquire now |
Series 721 Hexagonal reducer PA 6 GF, PG threads
| AG thread | IG thread | H (mm) | L (mm) | l (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|---|
| Pg 13,5 | Pg 9 | 24 | 6 | 9 | 50 | 721.1309.0 | Enquire now |
| Pg 16 | Pg 9 | 27 | 6 | 10 | 50 | 721.1609.0 | Enquire now |
| Pg 21 | Pg 13,5 | 32 | 6 | 10,5 | 50 | 721.2113.0 | Enquire now |
| Pg 21 | Pg 16 | 32 | 6 | 10,5 | 50 | 721.2116.0 | Enquire now |
| Pg 29 | Pg 21 | 40 | 6 | 11 | 25 | 721.2921.0 | Enquire now |
| Pg 36 | Pg 29 | 50 | 6 | 18 | 25 | 721.3629.0 | Enquire now |
Series 759 Round stopping plug IP54, metric thread
| Thread | D (mm) | H (mm) | L (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|
| M 12 x 1,5 | 14 | 2,5 | 5 | 100 | 759.1200.0 | Enquire now |
| M 16 x 1,5 | 18 | 3 | 5 | 100 | 759.1600.0 | Enquire now |
| M 20 x 1,5 | 22 | 3,5 | 6 | 100 | 759.2000.0 | Enquire now |
| M 25 x 1,5 | 28 | 4 | 7 | 100 | 759.2500.0 | Enquire now |
| M 32 x 1,5 | 35 | 4 | 8 | 50 | 759.3200.0 | Enquire now |
| M 40 x 1,5 | 44 | 5 | 8 | 50 | 759.4000.0 | Enquire now |
| M 50 x 1,5 | 54 | 6 | 9 | 25 | 759.5000.0 | Enquire now |
| M 63 x 1,5 | 67 | 6 | 10 | 10 | 759.6300.0 | Enquire now |
Series 750 Round stopping plug IP54, PG and G threads
| Thread | D (mm) | H (mm) | L (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|
| G 1/2" | 22 | 3 | 6,5 | 100 | 750.0012.0 | Enquire now |
| Pg 7 | 14 | 3 | 5 | 100 | 750.0700.0 | Enquire now |
| Pg 9 | 17 | 3 | 6 | 100 | 750.0900.0 | Enquire now |
| Pg 11 | 20 | 3 | 6 | 100 | 750.1100.0 | Enquire now |
| Pg 13,5 | 22 | 3 | 6,5 | 100 | 750.1300.0 | Enquire now |
| Pg 16 | 24 | 3 | 6,5 | 100 | 750.1600.0 | Enquire now |
| Pg 21 | 30 | 4 | 7 | 50 | 750.2100.0 | Enquire now |
| Pg 29 | 39 | 4 | 8 | 25 | 750.2900.0 | Enquire now |
| Pg 36 | 50 | 6 | 9 | 50 | 750.3600.0 | Enquire now |
| Pg 42 | 57 | 6 | 10 | 25 | 750.4200.0 | Enquire now |
| Pg 48 | 64 | 6 | 10 | 25 | 750.4800.0 | Enquire now |
Series 758 Round stopping plug IP66/68, metric thread (NBR)
| Thread | D (mm) | H (mm) | L (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|
| M 12 x 1,5 | 14 | 2,5 | 5 | 100 | 758.1200.0 | Enquire now |
| M 16 x 1,5 | 18 | 3 | 5 | 100 | 758.1600.0 | Enquire now |
| M 20 x 1,5 | 22 | 3,5 | 6 | 100 | 758.2000.0 | Enquire now |
| M 25 x 1,5 | 28 | 4 | 7 | 100 | 758.2500.0 | Enquire now |
| M 32 x 1,5 | 35 | 4 | 8 | 50 | 758.3200.0 | Enquire now |
| M 40 x 1,5 | 44 | 5 | 8 | 50 | 758.4000.0 | Enquire now |
| M 50 x 1,5 | 54 | 6 | 9 | 25 | 758.5000.0 | Enquire now |
| M 63 x 1,5 | 67 | 6 | 10 | 10 | 758.6300.0 | Enquire now |
Series 752 Round stopping plug IP66/68, PG thread (NBR)
| Thread | D (mm) | H (mm) | L (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|
| Pg 7 | 15 | 2,5 | 5 | 100 | 752.0700.0 | Enquire now |
| Pg 9 | 18 | 3 | 5 | 100 | 752.0900.0 | Enquire now |
| Pg 11 | 22 | 3 | 5 | 100 | 752.1100.0 | Enquire now |
| Pg 13,5 | 24 | 3 | 6 | 100 | 752.1300.0 | Enquire now |
| Pg 16 | 26 | 3 | 6 | 100 | 752.1600.0 | Enquire now |
| Pg 21 | 32 | 4 | 6 | 100 | 752.2100.0 | Enquire now |
| Pg 29 | 40 | 4 | 8 | 25 | 752.2900.0 | Enquire now |
Series 757 Round stopping plug IP66/68, metric thread (EPDM)
| Thread | D (mm) | H (mm) | L (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|
| M 12 x 1,5 | 14 | 2,5 | 5 | 100 | 757.1200.0 | Enquire now |
| M 16 x 1,5 | 18 | 3 | 5 | 100 | 757.1600.0 | Enquire now |
| M 20 x 1,5 | 22 | 3,5 | 6 | 100 | 757.2000.0 | Enquire now |
| M 25 x 1,5 | 28 | 4 | 7 | 100 | 757.2500.0 | Enquire now |
| M 32 x 1,5 | 35 | 4 | 8 | 50 | 757.3200.0 | Enquire now |
| M 40 x 1,5 | 44 | 5 | 8 | 50 | 757.4000.0 | Enquire now |
| M 50 x 1,5 | 54 | 6 | 9 | 25 | 757.5000.0 | Enquire now |
| M 63 x 1,5 | 67 | 6 | 10 | 10 | 757.6300.0 | Enquire now |
Series 769 Round stopping plug IP66/68, metric thread (VITON)
| Thread | D (mm) | H (mm) | L (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|
| M 12 x 1,5 | 14 | 2,5 | 5 | 100 | 769.1200.0 | Enquire now |
| M 16 x 1,5 | 18 | 3 | 5 | 100 | 769.1600.0 | Enquire now |
| M 20 x 1,5 | 22 | 3,5 | 6 | 100 | 769.2000.0 | Enquire now |
| M 25 x 1,5 | 28 | 4 | 7 | 100 | 769.2500.0 | Enquire now |
| M 32 x 1,5 | 35 | 4 | 8 | 50 | 769.3200.0 | Enquire now |
| M 40 x 1,5 | 44 | 5 | 8 | 50 | 769.4000.0 | Enquire now |
| M 50 x 1,5 | 54 | 6 | 9 | 25 | 769.5000.0 | Enquire now |
| M 63 x 1,5 | 67 | 6 | 10 | 10 | 769.6300.0 | Enquire now |
Series 754 Round stopping plug IP66/68, PG thread (VITON)
| Thread | D (mm) | H (mm) | L (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|
| Pg 7 | 15 | 2,5 | 5 | 100 | 754.0700.0 | Enquire now |
| Pg 9 | 18 | 3 | 5 | 100 | 754.0900.0 | Enquire now |
| Pg 11 | 22 | 3 | 5 | 100 | 754.1100.0 | Enquire now |
| Pg 13,5 | 24 | 3 | 6 | 100 | 754.1300.0 | Enquire now |
| Pg 16 | 26 | 3 | 6 | 100 | 754.1600.0 | Enquire now |
| Pg 21 | 32 | 4 | 6 | 100 | 754.2100.0 | Enquire now |
| Pg 29 | 40 | 4 | 8 | 25 | 754.2900.0 | Enquire now |
Series 762 Hexagonal stopping plug IP66/68, metric thread
| Thread | D (mm) | H (mm) | L (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|
| M 12 x 1,5 | 14 | 2,5 | 5 | 100 | 762.1200.0 | Enquire now |
| M 16 x 1,5 | 18 | 3 | 5 | 100 | 762.1600.0 | Enquire now |
| M 20 x 1,5 | 22 | 3,5 | 6 | 100 | 762.2000.0 | Enquire now |
| M 25 x 1,5 | 28 | 4 | 7 | 100 | 762.2500.0 | Enquire now |
| M 32 x 1,5 | 35 | 4 | 8 | 50 | 762.3200.0 | Enquire now |
| M 40 x 1,5 | 44 | 5 | 8 | 50 | 762.4000.0 | Enquire now |
| M 50 x 1,5 | 55 | 6 | 9 | 25 | 762.5000.0 | Enquire now |
| M 63 x 1,5 | 70 | 6 | 10 | 10 | 762.6300.0 | Enquire now |
Series 765 Hexagonal stopping plug Ex d, long thread (IIA/IIB)
| Thread | D (mm) | H (mm) | L (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|
| M 12 x 1,5 | 14 | 2,5 | 15 | 100 | 765.1200.0 | Enquire now |
| M 16 x 1,5 | 18 | 3 | 15 | 100 | 765.1600.0 | Enquire now |
| M 20 x 1,5 | 22 | 3,5 | 15 | 100 | 765.2000.0 | Enquire now |
| M 25 x 1,5 | 28 | 4 | 15 | 100 | 765.2500.0 | Enquire now |
| M 32 x 1,5 | 35 | 4 | 15 | 50 | 765.3200.0 | Enquire now |
| M 40 x 1,5 | 44 | 5 | 15 | 50 | 765.4000.0 | Enquire now |
Series 766 Hexagonal stopping plug Ex d, long thread (IIC)
| Thread | D (mm) | H (mm) | L (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|
| M 12 x 1,5 | 14 | 2,5 | 25 | 100 | 766.1200.0 | Enquire now |
| M 16 x 1,5 | 18 | 3 | 25 | 100 | 766.1600.0 | Enquire now |
| M 20 x 1,5 | 22 | 3,5 | 25 | 100 | 766.2000.0 | Enquire now |
| M 25 x 1,5 | 28 | 4 | 25 | 100 | 766.2500.0 | Enquire now |
| M 32 x 1,5 | 35 | 4 | 25 | 50 | 766.3200.0 | Enquire now |
| M 40 x 1,5 | 44 | 5 | 25 | 50 | 766.4000.0 | Enquire now |
Series 748 Hexagonal stopping plug IP66/68, AISI 303
| Thread | D (mm) | H (mm) | L (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|
| M 12 x 1,5 | 14 | 2,5 | 5 | 100 | 748.1200.0 | Enquire now |
| M 16 x 1,5 | 18 | 3 | 5 | 100 | 748.1600.0 | Enquire now |
| M 20 x 1,5 | 22 | 3,5 | 6 | 100 | 748.2000.0 | Enquire now |
| M 25 x 1,5 | 28 | 4 | 7 | 100 | 748.2500.0 | Enquire now |
| M 32 x 1,5 | 35 | 4 | 8 | 50 | 748.3200.0 | Enquire now |
| M 40 x 1,5 | 44 | 5 | 8 | 50 | 748.4000.0 | Enquire now |
| M 50 x 1,5 | 55 | 6 | 9 | 25 | 748.5000.0 | Enquire now |
| M 63 x 1,5 | 70 | 6 | 10 | 10 | 748.6300.0 | Enquire now |
Series 749 Hexagonal stopping plug IP66/68, AISI 316Ti
| Thread | D (mm) | H (mm) | L (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|
| M 12 x 1,5 | 14 | 2,5 | 5 | 100 | 749.1200.0 | Enquire now |
| M 16 x 1,5 | 18 | 3 | 5 | 100 | 749.1600.0 | Enquire now |
| M 20 x 1,5 | 22 | 3,5 | 6 | 100 | 749.2000.0 | Enquire now |
| M 25 x 1,5 | 28 | 4 | 7 | 100 | 749.2500.0 | Enquire now |
| M 32 x 1,5 | 35 | 4 | 8 | 50 | 749.3200.0 | Enquire now |
| M 40 x 1,5 | 44 | 5 | 8 | 50 | 749.4000.0 | Enquire now |
| M 50 x 1,5 | 55 | 6 | 9 | 25 | 749.5000.0 | Enquire now |
| M 63 x 1,5 | 70 | 6 | 10 | 10 | 749.6300.0 | Enquire now |
Series 772 Round stopping plug PA 6 GF, metric thread
| Thread | D (mm) | H (mm) | L (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|
| M 12 x 1,5 | 17 | 3 | 6 | 100 | 772.1200.0 | Enquire now |
| M 12 x 1,5 | 17 | 3 | 6 | 100 | 772.1200.3 | Enquire now |
| M 16 x 1,5 | 22 | 4 | 6 | 100 | 772.1600.0 | Enquire now |
| M 16 x 1,5 | 22 | 4 | 6 | 100 | 772.1600.3 | Enquire now |
| M 20 x 1,5 | 25,5 | 4 | 6 | 100 | 772.2000.0 | Enquire now |
| M 20 x 1,5 | 25,5 | 4 | 6 | 100 | 772.2000.3 | Enquire now |
| M 25 x 1,5 | 31 | 4,5 | 7 | 100 | 772.2500.0 | Enquire now |
| M 25 x 1,5 | 31 | 4,5 | 7 | 100 | 772.2500.3 | Enquire now |
| M 32 x 1,5 | 37 | 4,5 | 8 | 100 | 772.3200.0 | Enquire now |
| M 32 x 1,5 | 37 | 4,5 | 8 | 100 | 772.3200.3 | Enquire now |
| M 40 x 1,5 | 46 | 3,5 | 9 | 50 | 772.4000.0 | Enquire now |
| M 40 x 1,5 | 46 | 3,5 | 9 | 50 | 772.4000.3 | Enquire now |
| M 50 x 1,5 | 60 | 5 | 10 | 25 | 772.5000.0 | Enquire now |
| M 50 x 1,5 | 60 | 5 | 10 | 25 | 772.5000.3 | Enquire now |
| M 63 x 1,5 | 75 | 6 | 12 | 25 | 772.6300.0 | Enquire now |
| M 63 x 1,5 | 75 | 6 | 12 | 25 | 772.6300.3 | Enquire now |
Series 771 Round stopping plug PA 6 GF, PG thread
| Thread | D (mm) | H (mm) | L (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|
| Pg 7 | 15 | 2 | 6 | 100 | 771.0700.0 | Enquire now |
| Pg 7 | 15 | 2 | 6 | 100 | 771.0700.3 | Enquire now |
| Pg 9 | 19 | 3 | 6,5 | 100 | 771.0900.0 | Enquire now |
| Pg 9 | 19 | 3 | 6,5 | 100 | 771.0900.3 | Enquire now |
| Pg 11 | 22 | 3,5 | 6,5 | 100 | 771.1100.0 | Enquire now |
| Pg 11 | 22 | 3,5 | 6,5 | 100 | 771.1100.3 | Enquire now |
| Pg 13,5 | 25 | 3,5 | 6,5 | 100 | 771.1300.0 | Enquire now |
| Pg 13,5 | 25 | 3,5 | 6,5 | 100 | 771.1300.3 | Enquire now |
| Pg 16 | 27 | 3,5 | 6,5 | 100 | 771.1600.0 | Enquire now |
| Pg 16 | 27 | 3,5 | 6,5 | 100 | 771.1600.3 | Enquire now |
| Pg 21 | 33 | 4 | 8 | 100 | 771.2100.0 | Enquire now |
| Pg 21 | 33 | 4 | 8 | 100 | 771.2100.3 | Enquire now |
| Pg 29 | 44 | 3,5 | 8 | 50 | 771.2900.0 | Enquire now |
| Pg 29 | 44 | 3,5 | 8 | 50 | 771.2900.3 | Enquire now |
| Pg 36 | 55 | 4 | 10 | 25 | 771.3600.0 | Enquire now |
| Pg 36 | 55 | 4 | 10 | 25 | 771.3600.3 | Enquire now |
| Pg 42 | 61,5 | 4 | 10 | 25 | 771.4200.0 | Enquire now |
| Pg 42 | 61,5 | 4 | 10 | 25 | 771.4200.3 | Enquire now |
| Pg 48 | 68 | 4 | 12 | 25 | 771.4800.0 | Enquire now |
| Pg 48 | 68 | 4 | 12 | 25 | 771.4800.3 | Enquire now |
Cable Gland Accessories
Reducers, Adaptors And Stopping Plugs
Metallic Plugs
Brass and stainless stopping plugs for metallic enclosures and unused gland holes.
- IP66
- IP68
- ISO 9001
- RoHS
Polyamide Plugs
Polyamide stopping plugs for plastic glands and insulated electrical assemblies.
- IP68
- ISO 9001
- RoHS
Cable Gland Accessories
Recommended Accessories
Customers viewing this product often add these complementary parts to complete the cable entry.
Metallic Cable Glands
Robust glands in brass, lead-free brass and stainless steel.
- IP66
- IP68
- IP69K
- ISO 9001
- RoHS
Polyamide Cable Glands
Lightweight, corrosion-resistant glands for electrical and control-panel applications. Available in light grey, silver grey and jet black, with excellent sealing and strain relief.
- IP68
- ISO 9001
- RoHS
Conduit Pipes & Glands
Protective conduit pipes with matching glands in polyamide and metal for plant, vehicle and outdoor cable runs.
- IP68
- ISO 9001
- RoHS
Need A Specified Cable Gland? Talk To Our Team.
Tell us the application, cable type and environment — we will help you choose the right gland and accessories.
Contact UsHow We Can Help:
- Match glands to cable type, thread and environment
- IP66 / IP68 / IP69K sealing guidance
- Metal, polyamide, EMC and conduit ranges
- Custom threads, materials, inserts and finishes
- ISO 9001, 14001 and 45001 certified production in Pune
- Technical support from the Geissel India team
